ID : 7927
Project Property Setting
To use a Field network interface module as an PROFINET IO device, you need to register the following information from WINCAPSIII with referring to "Configuring a Project".

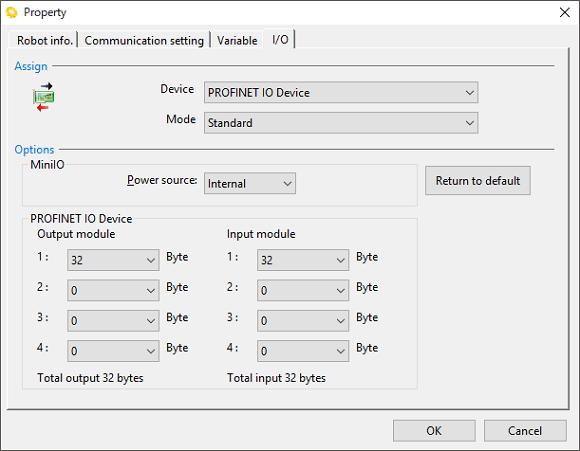

Operation path : [menu] - [Project] - [Property] - [I/O]
Assign
Device
| Setting value | |
|---|---|
| Device | PROFINET IO Device |
Mode
| Setting value | |
|---|---|
| Mode | Standard |
Options (MiniIO)
Power source
If the total maximum capacity of Mini I/O is 1.3 A or lower, the internal power source is available.
| Setting value | Defalt setting | |
|---|---|---|
| Power source |
|
Internal |
Options (PROFINET IO Device)
Input module / Output Module
Use this option to allocate I/Os for input and output modules. This will determine the number of I/O port available.
| Input module / Output Module | Setting value (byte) | Default Setting (byte) |
|---|---|---|
| 1 | "32" or "256" | 32 |
| 2 to 4 | "0", "32" or "256" | 0 |
I/O port range allocated to the PROFINET IO device is;
Input: 512 to 767, 4096 to 7871, 11648 to 15807
Output: 768 to 1023, 7872 to 11647, 19904 to 24063
The range of available I/O port number varies depending on the input module and output module settings.

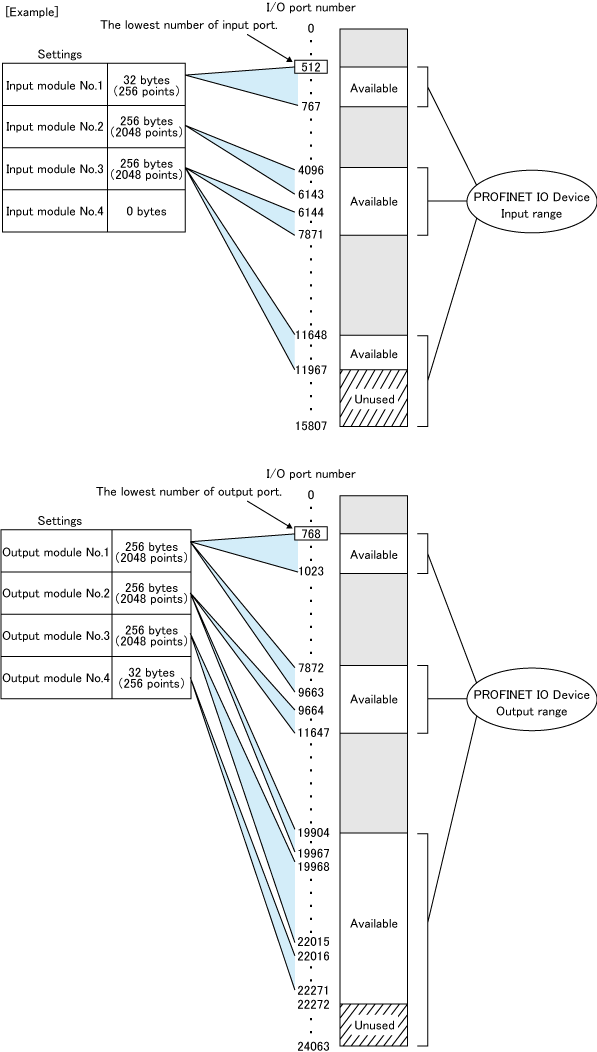

I/O port numbers corresponding to each module are assigned as described in the figure below. From the lowest number of the input port or output port, eight times of the module's byte count are assigned.
