Maximum Acceleration Limit Setting

Operation path: [F2 Arm] - [F12 Maintenance] - [F12 Service] - [F1 Acceleration Limit]

This screen appears only when the currently logged-in account is granted user permission for "Maintenance".

Set acceleration limits of each axis.

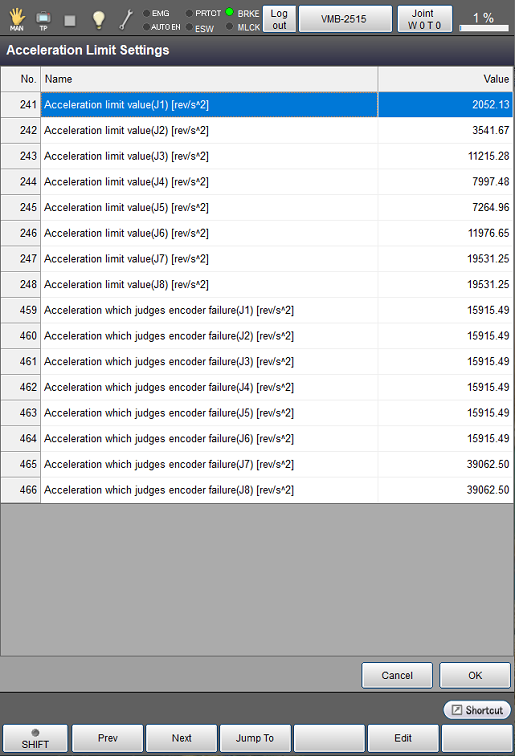

Tap [F1 Acceleration limit] to display [Acceleration Limit Settings] as shown below.

Available function keys
[F1 Prev]	Display the previous page of the currently displayed [Acceleration Limit Settings] screen.
[F2 Next]	Display the next page of the currently displayed [Acceleration Limit Settings] screen.
[F3 Jump To]	Displays numeric keypad. Enter the acceleration limit value limit of the axis to display and select with numeric keypad, and Tap [OK] to move to the acceleration limit value of the target axis.
[F5 Edit]	Select the acceleration limit value of the axis to change, and tap [Edit] to display numeric keypad. Enter the value with numeric keypad, and tap [OK] on the numeric keypad to change it. Tap [OK] in [Acceleration Limit Settings] window to confirm the changed value.
