Displaying Setting Menu for Pendant and Panel

Operation path: [F6 Setting] - [F3 Pendant and Panel]

Display setting menu associated with language setting, character size, and panel.

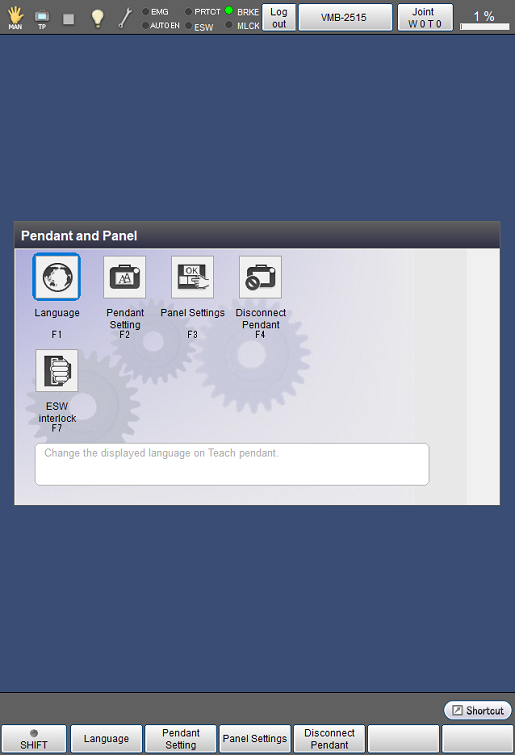

Tap [F3 Pendant and Panel] to display the following [Pendant and Panel] window.

Available function keys
[F1 Language] Set the display language for smart TP.
[F2 Pendant Setting] Perform settings associated with screen display for the smart TP.
[F3 Panel Settings] Perform settings associated with screen display for the panel.
[F4 Disconnect Pendant]

Disconnect the smart TP.

When tapping this button, system message appears. Tap [OK] to disconnect the smart TP.
When the smart TP is disconnected, all the operations include [MOTOR] cannot be operated (Except for an emergency stop function).

This key is available only when the currently logged-in account is granted user permission for "Programming" or "Maintenance".
[F7 ESW interlock] Perform settings associated with the enabling switch interlock(motor power, movement key).
