Cable Connection Procedure for CN21 Connector (reference)

1

Treatment of wire ends: Strip the wire ends of a customer-prepared cable.

2

Solder the wires onto the pins.

3

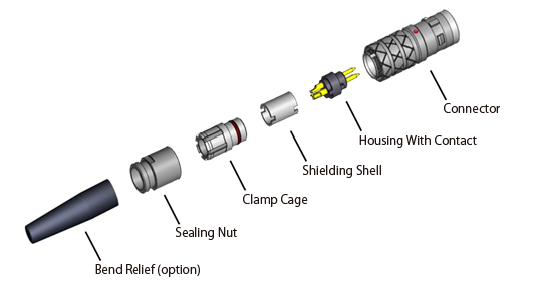

Assemble the parts in the order of 1→2→3, cover with 4 and tighten up with a torque wrench. (Tightening torque : 3.0～4.0 kgf·cm)

When assembling parts, rotate 3 so that the keys on 1·2·3 are match.

4

Cover with 5 and tighten up with a torque wrench. (Tightening torque : 3.0～4.0 kgf·cm)

5

Assemble 6.
