Cable Connection Procedure for CN25, CN24, and CN26 Connectors (reference)

This page shows the assembling procedure for CN25 connector. This assembling procedure is used for CN24, CN 26 straight connector as well.

1

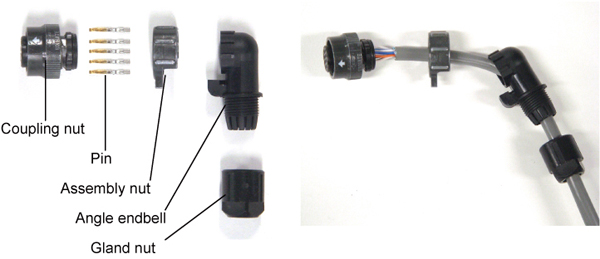

Pass the wires (φ6.5-8.0) through the gland nut, angle endbell, and assembly nut.

2

Solder the wires onto the pins.

3

Insert the pins into the coupling nut.

4

Select the orientation of the angle endbell and assemble the related parts.

5

Lock the assembled parts with the coupling nut.
