Cable Connection Procedure for Ether 1, 2 Connector (reference)

1

Treatment of wire ends: Strip the wire ends of a customer-prepared cable.

Recommended wire size is 24AWG.

2

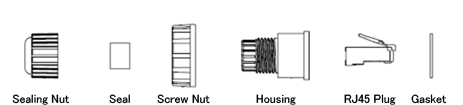

Attach the screw nut to the housing.

3

Attach the seal to the housing.

4

Pass the cable and the sealing nut in the direction of the arrow.

5

Crimp the RJ45 plug.

6

Move the RJ45 plug to the housing direction, attach a gasket to the tip and insert the RJ45 plug to the CPE.

7

Tighten the screw nut, and then tighten the sealing nut. (Recommended torque:6-8kgf-cm)
