Displaying CALSET Operation Menu
Operation path : [F2 Arm] - [F12 Maintenance] - [F7 CALSET]
To perform this operation, set the user level "Maintainer".
Display the menu associated with CALSET operation of robot.

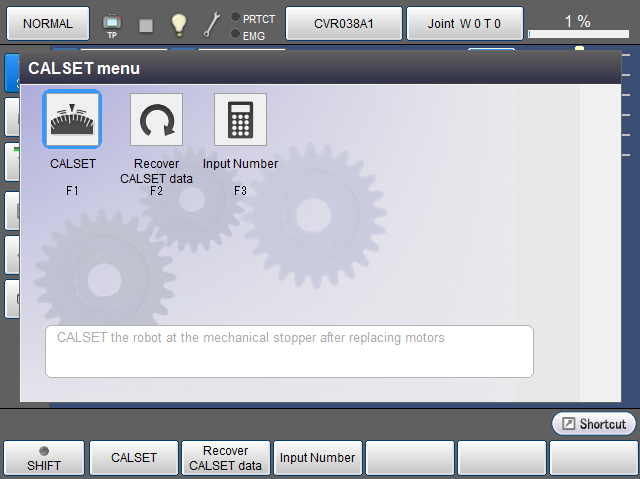

Press [F7 CALSET] to display the following [CALSET menu] window.
| Available function keys | |
|---|---|
| [F1 CALSET] |
Manually transfer respective joints of robot to CALSET position, and perform CALSET using CALSET jig. |
| [F2 Recover CALSET data] |
This function is not available in COBOTTA. |
| [F3 Input Number] | Enter RANG and CALSET values of robot which are known in advance by using numeric keypad. |
