Displaying and Setting the Configuration

Operation path : [F2 Arm] - [F6 Aux] - [F1 Config]

Set various configurations required to move robot.

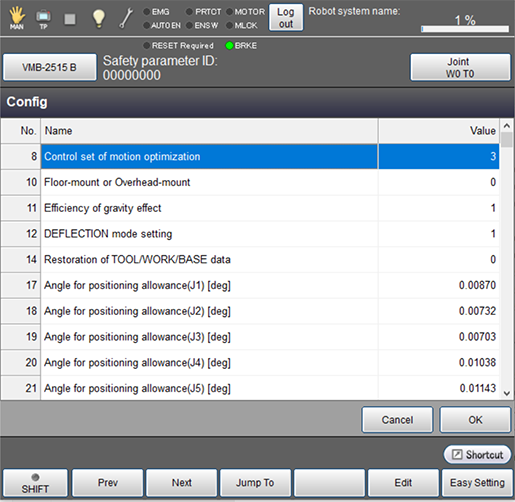

Press [F1 Config] to display the following [Config] window.

Available function keys
[F1 Prev] Display the previous page of the currently displayed configuration.
[F2 Next] Display the next page of the currently displayed configuration.
[F3 Jump To]

Display numeric keypad.

Enter the item number of configuration to display, and press [OK] to display the configuration item for the specified number.
[F5 Edit]

Select a configuration to be changed, then press [Edit] to display the numeric keypad or the entry screen.
When the numeric keypad appears, enter a value then press [OK] on the numeric keypad to change the value.
When the entry screen appears, select an item then press [OK] on the entry screen to change the item.
Changed value or item are confirmed by pressing [OK] button on the [Config] window.

This key appears only when the currently logged-in account is granted user permission for "Programming".
[F6 Easy Setting] This function enables various settings suitable for the actual application environment without difficulty.
For details, refer to Easy Setting (Smart TP).

This key appears only when the currently logged-in account is granted user permission for "Programming" or "Maintenance".
