Displaying the Communication and Executable Token Menu

Operation path: [F6 Setting] - [F5 Communication and Token]

Perform settings associated with executable token and communication.

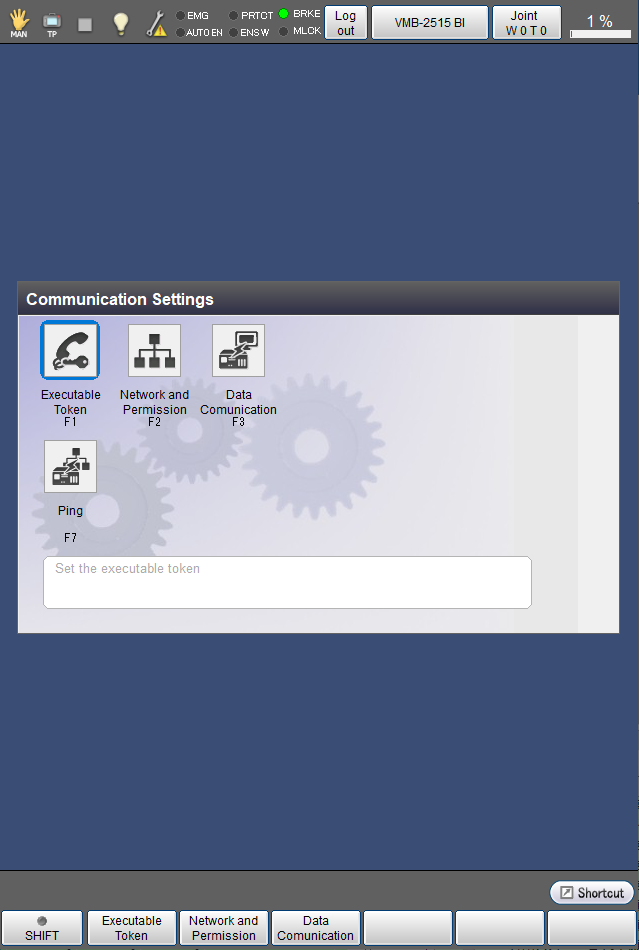

Tap [F5 Communication and Token] to display the following [Communication Settings] window.

Available function keys
[F1 Executable Token]	Set the executable token. This key appears only when the currently logged-in account is granted user permission for "Programming" or "Maintenance".
[F2 Network and Permission]	Perform settings associated with communication between WINCAPSIII and controller.
[F3 Data Communication]	Perform settings associated with data communication.
[F7 Ping]	Send and receive data packet, and then display the result of the ping test.
