List of Outline Drawings (Motion Ranges)

This section divides the COBOTTA products into the following classifications and lists the outline drawings of the products for reference.

• COBOTTA Unit
• Accessories
• Options

COBOTTA Unit

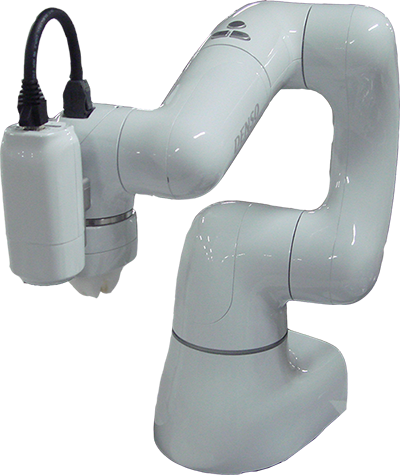

The outline drawings and motion range of the COBOTTA unit are "here (PDF:310KB)".

There are outline drawings of COBOTTA on which an electric gripper for COBOTTA is mounted and on which an AF camera (N10-W02) is mounted.
COBOTTA has a smooth curved external shape.

Accessories

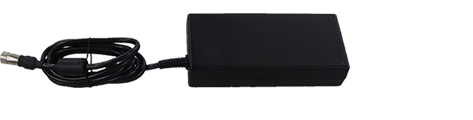

The outline drawing of the AC adapter is "here (PDF:213KB)".

When using AC adapter, connect an AC cable prepared for each region. AC cable is an optional item. When placing an order for COBOTTA, select an AC cable according to the outlet type of country where COBOTTA is used.

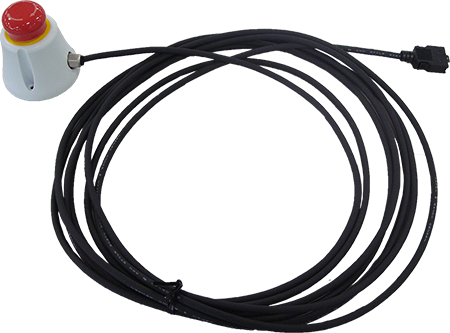

The outline drawing of the emergency stop box is "here (PDF:242KB)".

The outline drawing of the dummy connector (I/O) is "here (PDF:116KB)".

Options

The outline drawing of the AC cable is "here(PDF:213KB)"

When placing an order for COBOTTA, select an AC cable according to the outlet type of country where COBOTTA is used.

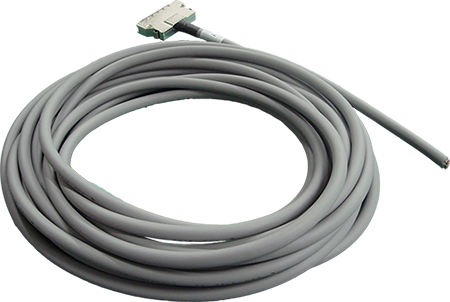

The outline drawing of the Mini I/O cable is "here (PDF:120KB)".

The outline drawing of the VGA junction cable is "here (PDF:124KB)".

The outline drawing of the COBOTTA end-effector Ethernet cable is "here (PDF:118KB)".

Electric gripper for COBOTTA

The outline drawing of COBOTTA on which the electric gripper for COBOTTA is mounted is "here (PDF:310KB)".

The dimensional installation drawing of fingers is "here".

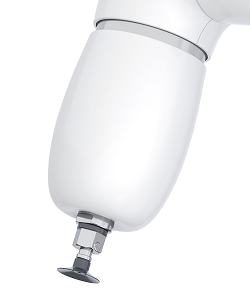

The outline drawing of the electric vacuum generator is "here (PDF:117KB)".

AF camera (N10-W02)

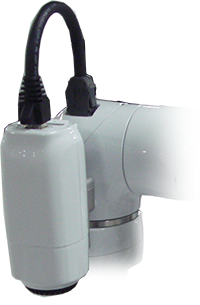

The outline drawing of COBOTTA on which the AF camera (N10-W02) is mounted is "here (PDF:310KB)".
Note that the position where the AF camera is mounted differs depending on the shipment time. Details about the size are written in the PDF file of outline drawing.

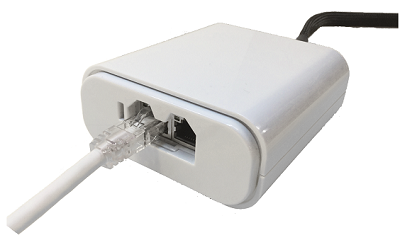

The outline drawing of the field network interface module is "here (PDF:141KB)".
