Tool Setting

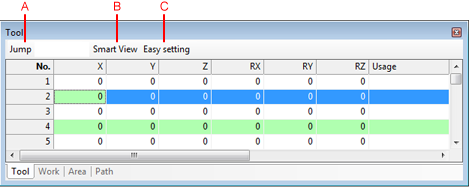

Description of Buttons

A: Jump

Display a selected line number.

B: Smart View

Display lines which Smart checkbox are selected.

C: Easy setting

Display [Easy setting window] of the tool coordinates.
The result of the Easy setting will be given in the tool coordinate of the selected number.

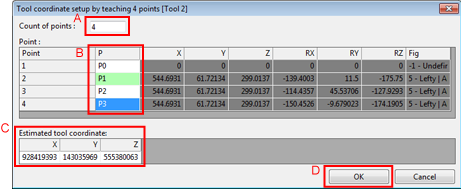

Easy Setting

Set a tool coordinate by using teaching-completed P-type position variables.
Once a tool coordinate is calculated from specified P-type variables, the result will be displayed in the Estimated tool coordinate. Pressing [OK] button will register the results into the called tool number.

A: Count of points

Enter how many Point you use for the calculation.

B: Point

Specify the number of teaching-completed P-type variables.

C: Estimated tool coordinate

Once a tool coordinate is calculated from Point, the result will be displayed in the text boxes, and then [OK] button will be enabled.

D: [OK] button

Set the calculation result displayed in the Estimated tool coordinate to the tool coordinate.
