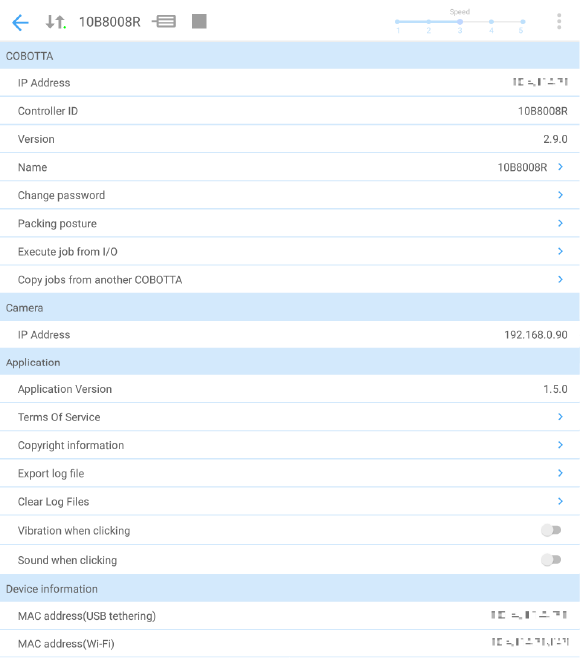

Setting Window

In the setting window, application setting and login password change can be performed.

Each item is explained below.

COBOTTA

IP Address

Displays the IP address of COBOTTA.

Controller ID

Displays the internal Controller ID of COBOTTA.

Version

Displays the software version of COBOTTA.

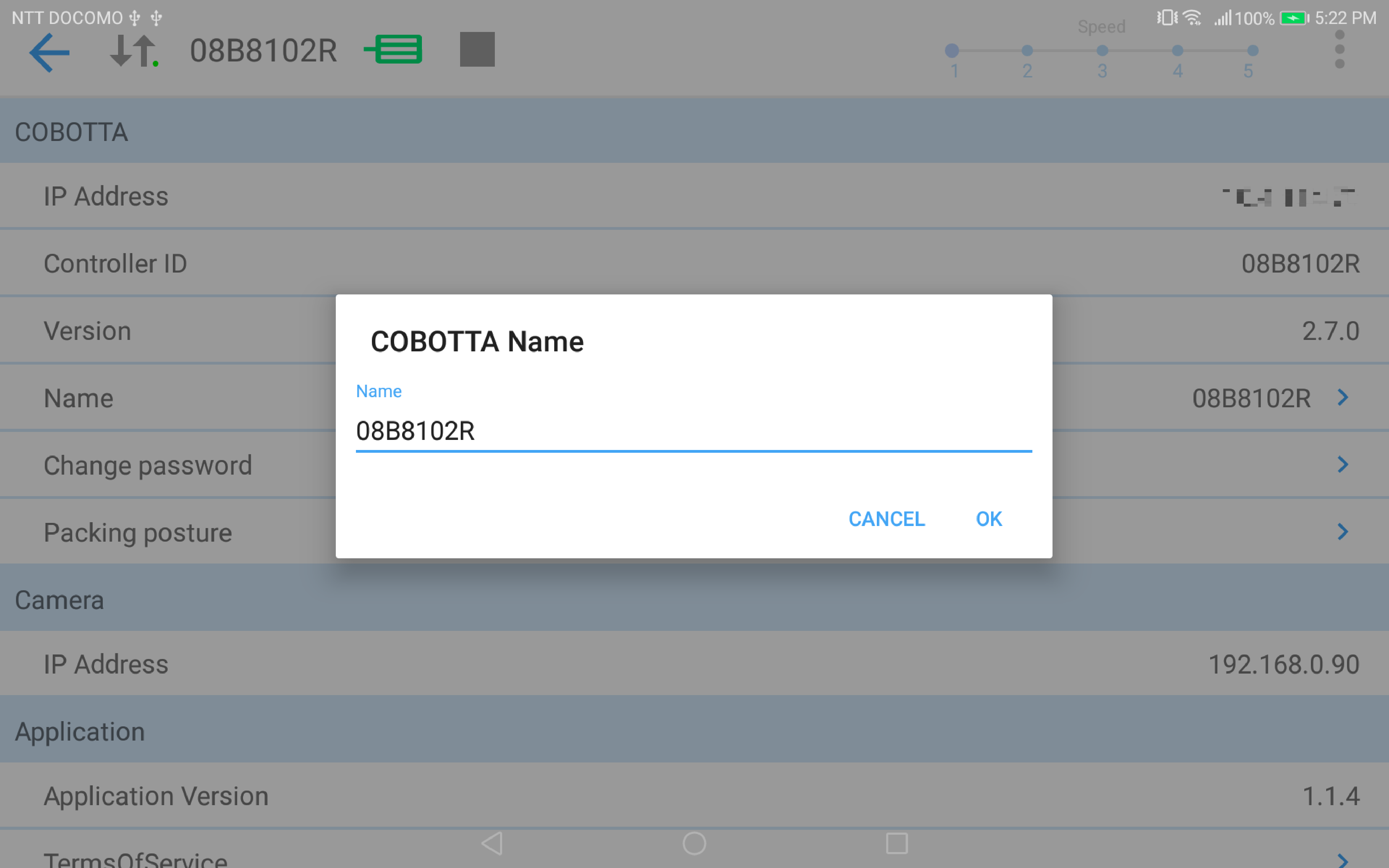

Name

Used to change the name of the connected COBOTTA.

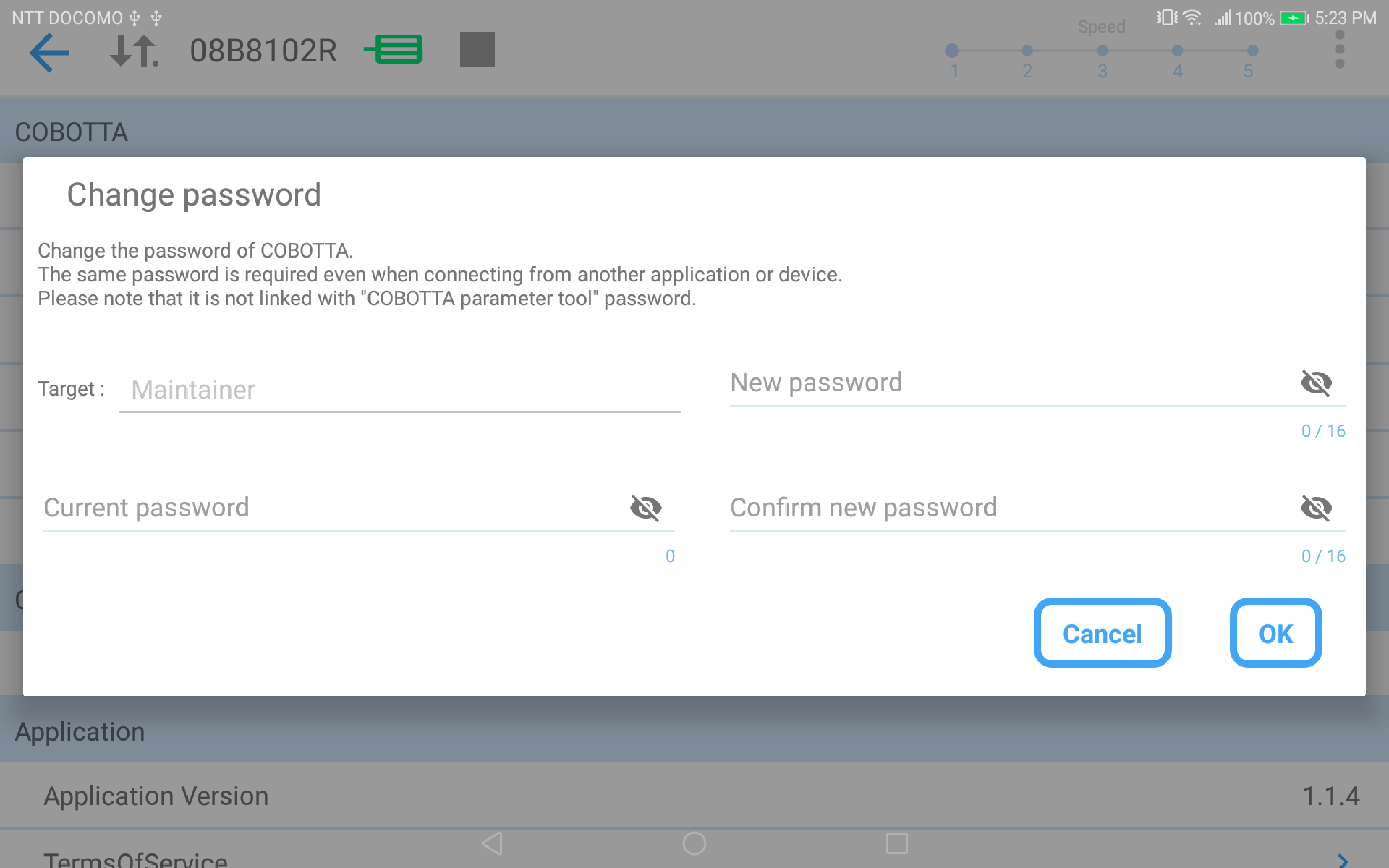

Change password

Used to change the login password.
Login password can be changed for each log in level.

The following shows the default passwords.

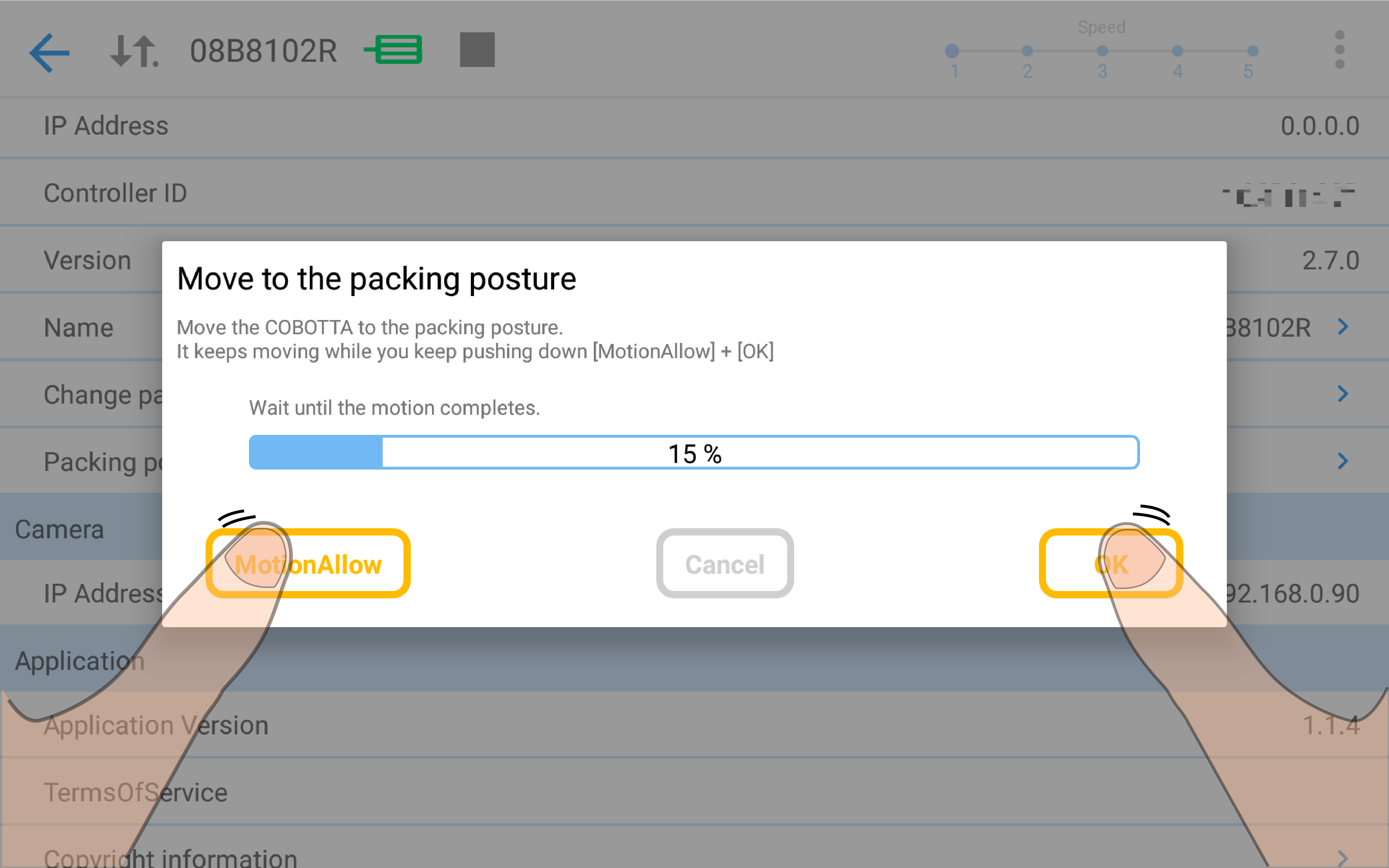

Packing posture

Used to change the posture of COBOTTA back to the packing posture.
Press [MotionAllow] and then [OK] to put COBOTTA in motion. Keep pressing [MotionAllow] and [OK] alternately until the progress bar reaches 100%.

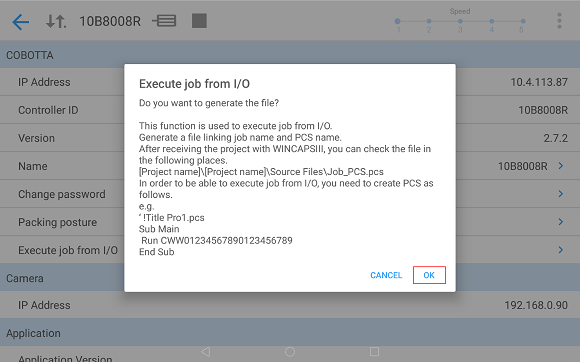

Execution job from I/O

A job created with Cobotta World is converted to a PAC command to execute it from the Remote TP or Virtual TP.

Press [OK] to convert the created job to a PAC command and create a file inside COBOTTA.
Receive the created file from COBOTTA through WINCAPSIII.

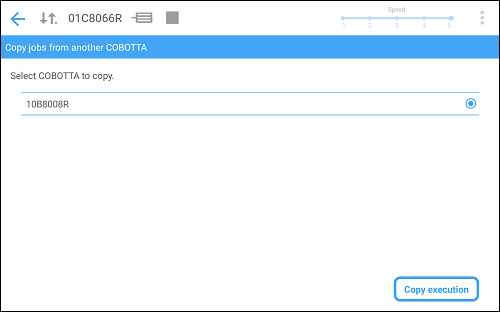

Copy jobs from another COBOTTA

A job created with this tablet can be copied from another COBOTTA to the currently connected COBOTTA. This is useful when multiple robots do the same job.

COBOTTA's jobs at the time of connection are automatically stored in the tablet.

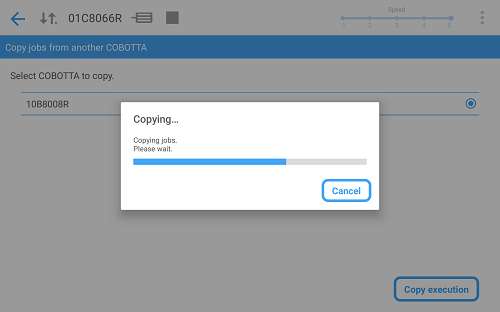

Select COBOTTA to copy jobs. Tap [Copy execution] to start copying.

Camera

IP Address

Displays the IP address of COBOTTA Camera.

Application

Application Version

Displays the version number of Cobotta World in use.
The latest application can be downloaded from the "Google Play".

TermsOfSerrvice

Displays the user policy of Cobotta World.

Copyright information

Displays the copyright information of Cobotta World.

Export Log File

Exports the log file to the folder in tablet.

Clear Log Files

Used to delete the log file.

Vibration when clicking

Used to switch between on and off of the vibrating function of tablet when clicked.

Sound when clicking

Used to switch between on and off of the click sound of tablet.

Device information

MAC address(USB tethering)

The MAC address of a connected tablet is displayed. It is displayed only while USB tethering is in use.

MAC address(Wi-Fi)

The MAC address of a connected tablet is displayed. It is displayed only while Wi-Fi is connected.
