Area Function

The area function detects whether a tool coordinates origin is inside or outside specified space (called as an interference check area). Accordingly, it turns on the specified I/O port or causes an error. This function is available in Ver.2.5.* or higher.

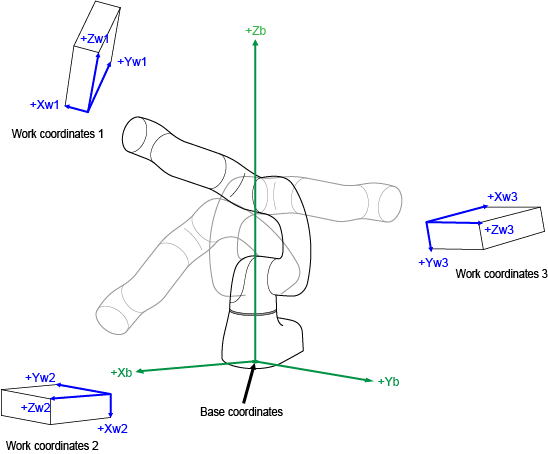

It can be used for interference check between the robot and other facilities. The interference check area may be defined based on the base coordinates and work coordinates shown below.
