Communication Setting

Once the connection between WINCAPSIII and a COBOTTA completes, perform communication setting of WINCAPSIII.

For further details on configuring the COBOTTA, please refer to "Displaying and Changing Communication Settings Screen"of TP App Operation Guide.

1

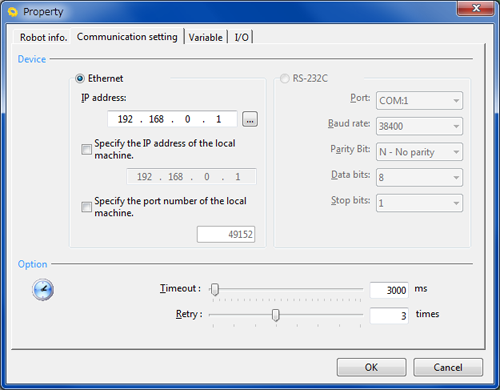

From the menu bar, click Connect, click Connect Setting to display the Communication setting tab on Property dialog box.

2

Configure the link.

• Ethernet connection


  Specify IP address of the COBOTTA.

3

Enter values in [Timeout] and [Retry].

4

Press the OK button to save the new settings.
