Numerical Input Button

Numerical Input Button is to input numerical data on the display.

The numerical input button control has a value ("Value" property) and the value is retained during the task.

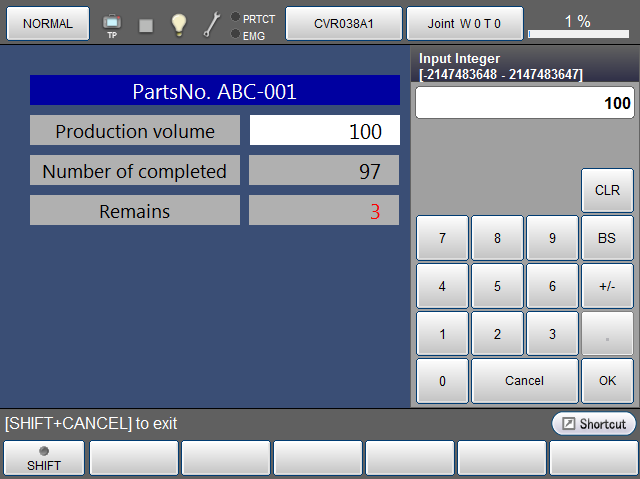

The input dialog of the value displays the dialog along with "Style" property.

Numerical Input Button Event

Event	Description
Clicked	Button pressed
Released	Button released
Done	[OK] pressed

Numerical Input Box Property

Property Name	Data Type	Description
Name	String	Parts name PacScript cannot rewrite this property
Type	Integer	Parts name PacScript cannot rewrite this property
X	Integer	X coordinates of the upper left corner of the drawing region
Y	Integer	Y coordinates of the upper left corner of the drawing region
Width	Integer	Width of the control(pixel size)
Height	Integer	Height of the control(pixel size)
FG	Integer	Foreground color
BG	Integer	Back color
Group	Integer	Group number to which part belongs
Active	Integer	Visible / Invisible and Enable / Disable settings
Style	Integer	Display style and data type settings 0 - 2D : Integer 1 - 3D : Integer 2 - 2D(Hex) : Integer (Hexadecimal / Input) 3 - 3D(Hex) : Integer (Hexadecimal / Input) 4 - 2D(Real) : Real Number (Double-precision real) 5 - 3D(Real) : Real Number (Double-precision real)
Caption	String	-
FName	String	Font name The font with * is installed on the COBOTTA
FSsize	Integer	Font size
Justify	Integer	Caption positioning 0: Centered 1: Right-justified 2: Left-justified
Value	Double	Default value of the numerical input box

Precaution for "Style" Property

When "Style" property of the program is changed, the value of the "Value" property is changed accordingly. Therefore, when the "Style" is double-precision real type and retains the number outside the integer range, you cannot change the "Style" property to the "Integer". Doing so, it causes an error.
