Text Box

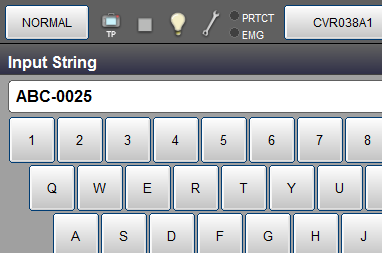

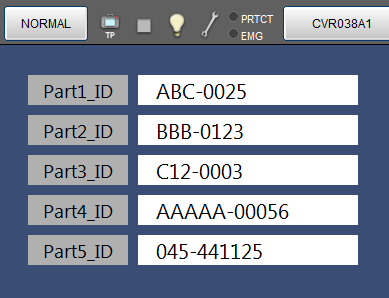

Text box is a control to input the character string type data on the display.
The text box control has a value ("Text" property) and the value is retained during the task.
Text Box Event
| Event | Description |
|---|---|
| Clicked | Button pressed |
| Released | Button released |
| Done | [OK] pressed |
Text Box Property
| Property Name | Data Type | Description |
|---|---|---|
| Name | String | Parts name PacScript cannot rewrite this property |
| Type | Integer | Parts name PacScript cannot rewrite this property |
| X | Integer | X coordinates of the upper left corner of the drawing region |
| Y | Integer | Y coordinates of the upper left corner of the drawing region |
| Width | Integer | Width of the control(pixel size) |
| Height | Integer | Height of the control(pixel size) |
| FG | Integer | Foreground color |
| BG | Integer | Background color of control |
| Group | Integer | Group number to which part belongs |
| Active | Integer | Visible / Invisible and Enable / Disable settings active settings |
| Style | Integer | Display style |
| Caption | String | - |
| FName | String | Font name The font with * is installed on the COBOTTA |
| FSize | Integer | Font size |
| Justify | Integer | Caption positioning
|
| Text | String | Input text. Equivalent to variable of type string. |
