Turning COBOTTA ON/OFF
COBOTTA supplies itself with power and controls it.Turn on the power of COBOTTA so that it can operate.
For safety, turn off the power of COBOTTA before connecting cables, replacing parts, and performing internal checks.

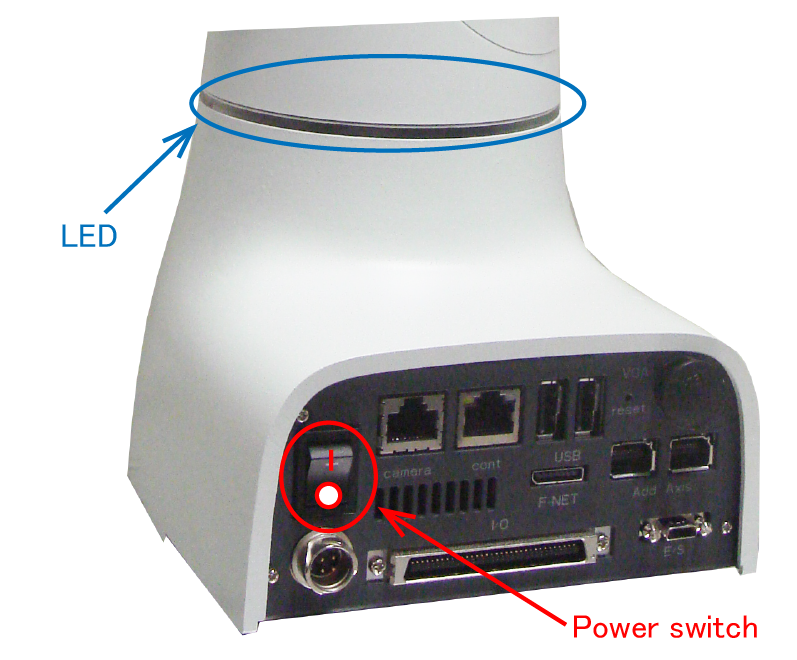

To turn on/off the COBOTTA power, push the upper/lower side of the power switch shown below.
- Push the upper side ("I" part): Turns on the power
- Push the lower side ("O" part): Turns off the power
When COBOTTA is turned on, the LED on the COBOTTA unit shown below lights up. When it is turned off, the LED goes out.
- If the motor power is on, turn it off before turning off COBOTTA.To turn the COBOTTA power on immediately after turning it off, wait for six seconds or more and check that none of the LEDs is lit any more.
- When the motor is powered on for the first time after the startup of COBOTTA, the internal circuit check is performed. During the internal circuit check, COBOTTA exhibits minute motions. Also, it takes longer until the motor is powered on.
To avoid electric shock or damage to the product, before turning on your COBOTTA, check that there is no damage to cables or wires.
Note that, when the power is turned off, the fan will stop but will rotate for a few seconds again immediately after stopping.
