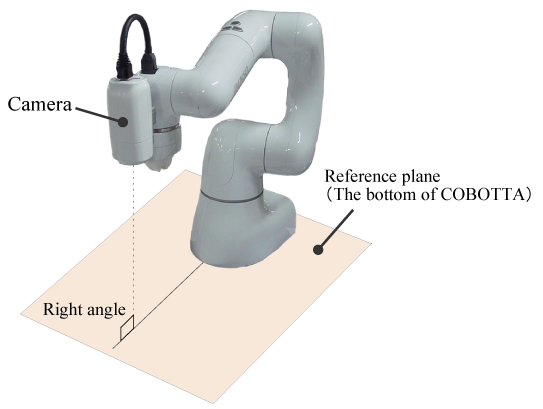

HandEyeInitPos

Example

!TITLE "PlainHandEyeEVP"

' Approach distance 100mm
' Depart distance  100mm

' Position to place a workpiece      P[PlaceNumber]

' With EVPRun, take snapshots, process image data, read  workpiece position,
'              and then set these values into the following data.
' The number of detected workpieces  I[NumberOfWorks]
' Position of detected workpieces    P[WorkPlaceNumber], P[WorkPlaceNumber +1], ... ,
'                                    P[WorkPlaceNumber + the number of detected workpieces -1]
' The type of detected workpieces    I[WorkTypeNumber], I[WorkTypeNumber +1], ... ,
'                                    I[WorkTypeNumber + the number of detected workpieces -1]

' Flow of program
' Move to HandEyeInitPos()
'  -> Making snapshots & processing images.
'  -> Moving between the position of detected workpiece and P[PlaceNumber] repeatedly.
'        (Repeat the motion up to the number of detected workpieces)
'  -> Move to HandEyeInitPos()

'------------Setting-------------

' EVP project file name
#Define EVPProjectFileName "project.evp"

' Height from the workpiece (safety margin for test run) [mm]
#Define WorkHeight 20

' P-type variable number of the robot position at the image acquisition.
#Define RobotImageAquisitionNumber 0

'P-type variable number of the place position.
#Define PlaceNumber 1

'I-type variable number of the number of detected workpieces.
#Define NumberOfWorks 0

'The start number among P-type variable numbers to store detected workpiece positions.
#Define WorkPlaceNumber 10

'The start number among I-type variable numbers to store the detected workpiece types.
#Define WorkTypeNumber 10

'-----------------------------

#Include "Variant.h"
Dim ctrl as Object

Sub Main
  Dim index As Long

  TakeArm Keep = 0

  ' EVP initial setting (selecting an EVP project file)
  EVPInitialize EVPProjectFileName

  ' Posture at the calibration
  Dim initPos as Position
  initPos = HandEyeInitPos()

  Move P, initPos

  ' Taking snapshots & image processing& acquiring workpieces
  EVPRun

  'Repeat this operation to the number of detected workpieces.
  For index = 0 To I[NumberOfWorks] - 1

    '------- Move to the detected workpiece position -------------------------
    'Approach motion.  Move to 100mm above of P[10 + index].
    Approach P, P[WorkPlaceNumber + index], @0 100
    'Descending motion.  Go down to P[10 + index].
    Move L, @C P[WorkPlaceNumber + index]
    'Write gripping or releasing motion here, if necessary.
    Delay 500
    'Ascending motion.  100mm
    Depart L, @0 100

    '------- Robot motion at the place position  -------------------------
    'Approach motion.  Move to 100mm above of P[1] position.
    Approach P, P[PlaceNumber], @0 100
    ' Descending motion.  Go down to P[1].
    Move L, @C P[PlaceNumber]
    'Write gripping or releasing motion here, if necessary.
    Delay 500
    ' Ascending motion    100mm
    Depart L, @0 100

  Next

  'Move to the robot position where snapshots have been taken.
  Move P, initPos

End Sub

Sub EVPInitialize (EVPProjectFile as string)
  ctrl = Cao.AddController("Runner", "CaoProv.DENSO.EVP", "",_
         "project=" & EVPProjectFile)
End Sub

Sub EVPRun

  Dim index As Long
  Dim ReturnValue As Variant
  Dim vntWorks As Variant
  Dim vntWork As Variant

  ' Taking snapshots & image processing
  ' =======================================
  ' Detailed information : Specifications of the return value of Run command
  ' Return value of Run Command.
  ' result <VT_VARIANT | VT_ARRAY> =
  '     Work Count    ... <VT_I4>
  '     Work Datas    ... <Work Data | VT_ARRAY>
  '     Work Data     ... <VT_VARIANT | VT_ARRAY>
  '                        (classId, P(x, y, z, rx, ry, rz, fig))
  '     Feeder Action	... <VT_I4>
  ' =======================================
  ReturnValue = ctrl.Run()

  'Store the number of detected workpieces into I[0].
  I[NumberOfWorks] = ReturnValue( 0 )

  ' Store the workpiece position into P[10], P[11], ..., P[10+the number of detected workpieces-1].
  vntWorks = ReturnValue( 1 )
  For index = 0 To I[NumberOfWorks] - 1
    vntWork = vntWorks(index)

    'Read the workpiece position
    P[WorkPlaceNumber + index] = vntWork( 1 )

    'Store the height of workpieces to P[10], P[11], ..., P[10+the number of detected workpieces-1].
    LetZ P[WorkPlaceNumber + index] = PosZ(P[WorkPlaceNumber + index]) + WorkHeight
  Next
End Sub
