SetArea

Function

To activate detection in a designated detection area.

This command is available in Ver.2.5.* or higher.

Syntax

SetArea area number

Guaranteed Entry

Area number
Designate an area number from 0 to 31 by Integer Type data.

Description

An area of the designated area number is activated.

Related Terms

Area, ResetArea, AreaPos, AreaSize, GetAreaDetected, ClearAreaDetected, Area Function

Attention

  • Activate Area detection. Switch ON/OFF the specified I/O, based on the Area command configuration.

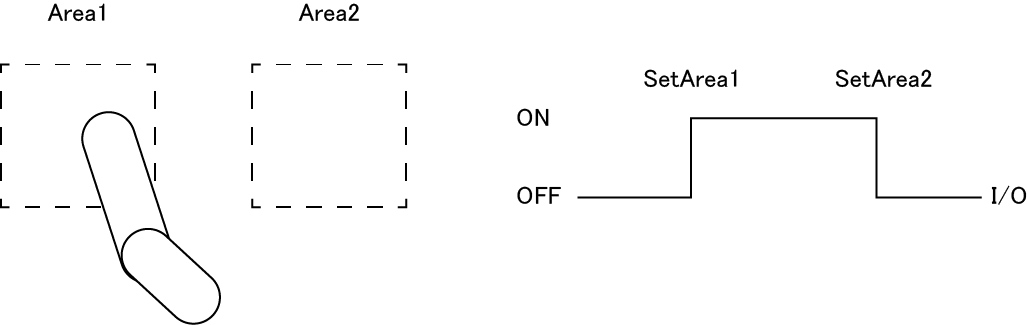

  • Assuming that the same I/O is used for two areas (see the figure below), and the I/O turns ON once an object enter the detection area. When SetArea1 command is executed while an object is already exist in Area1, the I/O turns ON; however, if SetArea2 command is executed succeedingly, the I/O turns OFF.

Example

'!TITLE "Initialization of Interference Check"
' Initialization of interference check
Sub Sample_SetArea

  Dim aaa As Position
  Dim bbb As Vector

  aaa = P( 10, 10, 5, 0, 9, 0, 1 )
  bbb = V( 50, 10, 50 )

  Area  2, aaa, bbb, 104, 1

  SetArea 2
  ResetArea 2

End Sub
