Displaying Program List Window (Edit window)

Operation path : Top window - [F1 Program]

Display the registered program list display.

Clicking [Edit/Run] button switches the operation window between the program-edit window (edit window) and the program auto-run window (Run window).

The following describes the operation when the caption of this button is [Edit]. For about the operation when this caption is [Run], refer to Displaying Program List window (Run window).

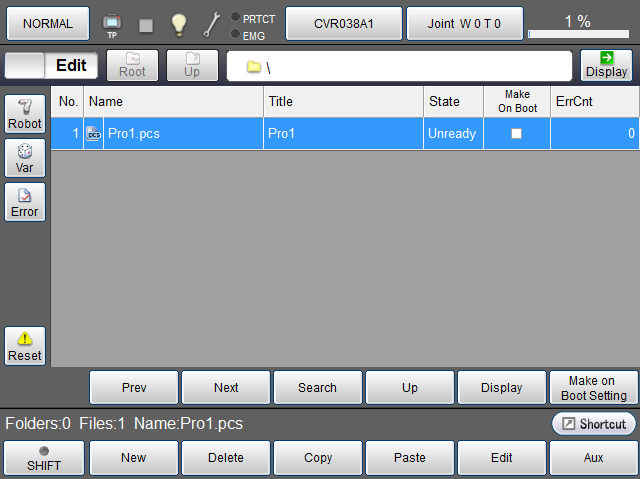

Clicking [F1 Program] displays the following [Program list window].

Click [F1 Program] when in manual mode to display the following [Program list] window.



Keys other than function keys
Edit/Run

Switches the edit window and run window.

The caption of this button is [Edit] in the edit window. It will be [Run] in the run window.

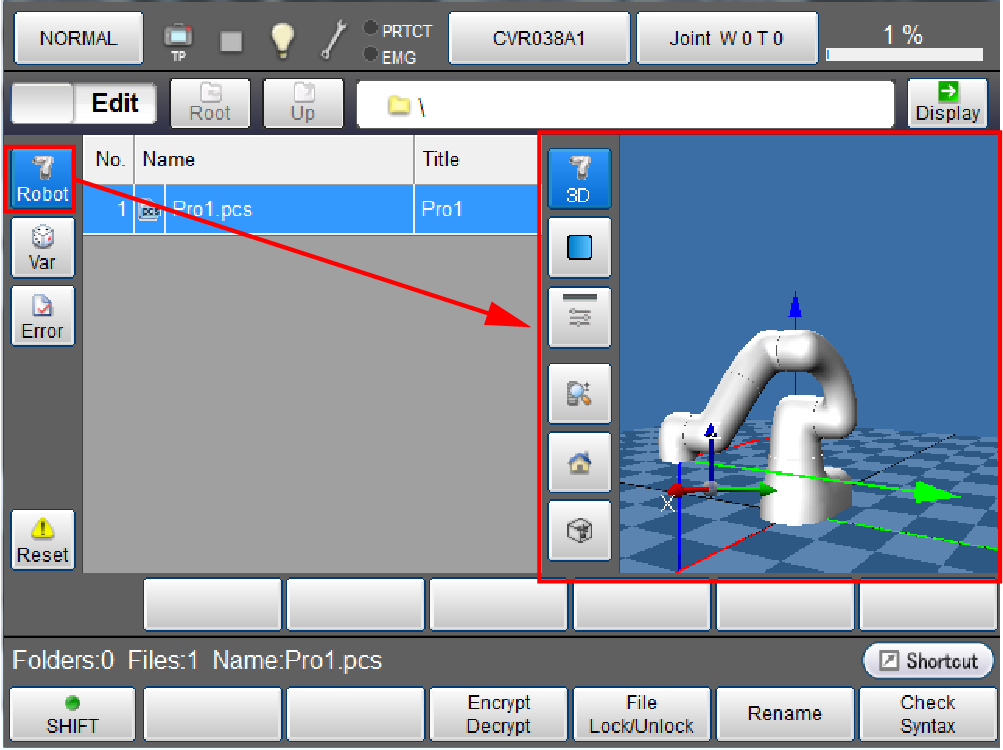

Robot

Display 3D image of the robot. For information about operation keys, refer to " Displaying Current Position Information and 3D Image of Robot ".

Button turns blue while robot button is clicked.

Var Display a static variable monitoring window.
Error Display syntax error log information.
Reset [Program reset] window opens. Select either "Only this program" or "All programs", and click [OK] to reset the target program.
Root Move to the highest folder hierarchy.
Up Move to the folder hierarchy that is one higher than the current one.
Path Enter path in the displayed file path input screen, and click [OK] to move to the specified file path.
Display Display contents of the selected folder and file.
Prev Display the previous page of the currently displayed program list.
Next Display the next page of the currently displayed program list.
Search

Display file name search window.

Enter file name, and click [OK] to search the entered file name.

Up Move to the folder hierarchy that is one higher than the current one.
Display Display contents of the selected folder and file.
Make On Boot Setting

A Make On Boot Setting-enabled program is compiled at the time of controller startup.
Since the program is pre-checked, it performs quicker only at the first time of controller startup.
However, if there are too many Make On Boot Setting-enabled programs, it takes long time to activate the controller.
Select either of the following, and click [OK] to set.

  • Set this program used in the project
  • Turn On in the current folder
  • Turn Off in the current folder
  • Turn On all the programs・Turn Off all the programs
Available function keys
[F1 New]

Display the screen to create new program.

Enter program name, and click [OK] to display contents of new program. The pre-prepared sample programs including "Pick & Place" and "Palletizing" can be also selected and used.
New folders and new header files are also created in the screen to create new program.
[F2 Delete] Deletes the selected folder or file.
[F3 Copy] Copy the selected file.
[F4 Paste] Paste the copied file.
[F5 Edit] Select program in the program list, and click [Edit] to display contents of selected program. Then, edit the program.
[F6 Aux] Change settings associated with start and stop of program and supervisory task.
[F9 Encrypt/Decrypt] Encrypt and decrypt the selected file.
For detailed information, refer to "Program Code Encryption" in Programmer's Manual.
[F10 FileLock/Unlock] Prevent users from editing specified program. Use a password to lock/unlock.
For detailed information, refer to "Lock Function" in Function Guide.
[F11 Rename] String input window will be displayed. Enter new file name, and click [OK] to change the file name.
[F12 Check Syntax] Display system message that prompts you to select either "Only select program" or "All programs of use condition". Select one of them, and click [OK] to execute syntax check for the target program.
