Parameter Setting Screen of the Eelectric Gripper

Route: Top window - [F9 Hand] - [F6 Aux]

Set parameters to be used in the Electric gripper.
For detail of parameters, refer to"Preparation for Use ".

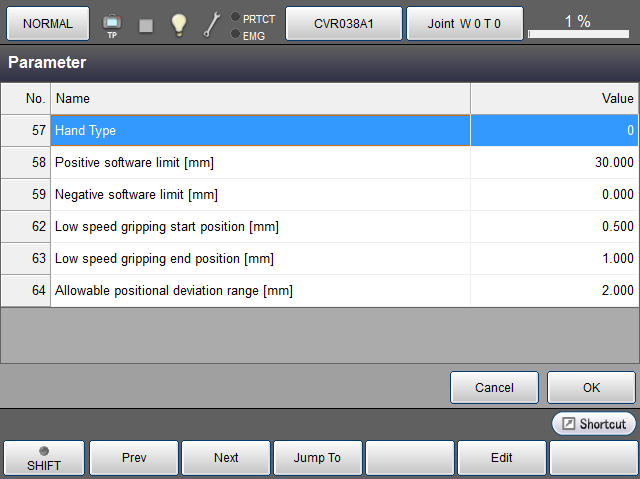

To open the hand parameter screen shown below, press [F2 Parameter].

Display Description
No. Display the parameter number of the electric gripper.
Name

Display the parameter item of the electric gripper.
The last "n" shows the hand number.
Value

This shows the value of the parameter.
To change the value, press [F5 Edit]
Cancel

Undo the parameter change.
The parameter data returns to the previous.
OK Changes will be reflected.

Available Function Key

Available function key
[F1 Prev] Display the page which displayed immediately before the current page.
[F2 Next] Display the immediately next page of the currently displayed parameter list.
[F3 Jump To] Select and display the parameter by numerical keypad.
[F5 Edit]

Select the parameter that you would like to change, then press[Edit] to appear the numerical keypad. Input the value by the numerical keypad then press [OK] to change the value.
To confirm the changed value, press [OK] of the Hand main screen.
