Displaying and Adding/Deleting Function Extension Screen
Operation path : [F6 Setting] - [F8 Option] - [F1 Extension]
Add option functions to COBOTTA.
Also delete the added option functions.

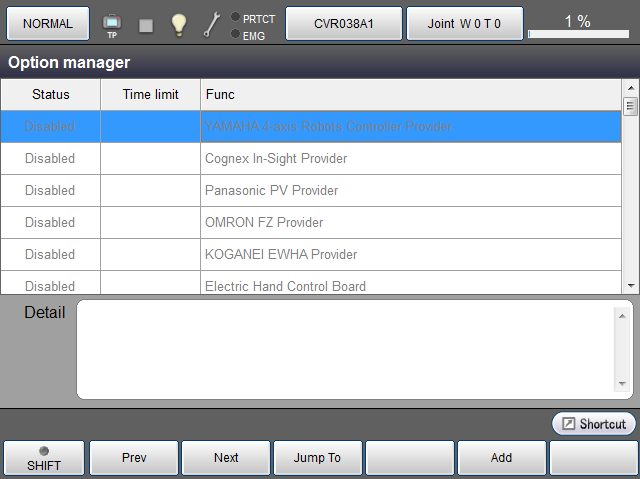

Press [F1 Extension] to display the following [Option manager] window.
| Available function keys | |
|---|---|
| [F1 Prev] | Display the previous page of the currently displayed option function list. |
| [F2 Next] | Display the next page of the currently displayed option function list. |
| [F3 Jump To] | Display numeric keypad. Enter the list number of option function with numeric keypad, and press [OK] to move to the target option function. The selected option functions will be highlighted. This can be also selected by using up and down cursor keys on the Remote TP/Virtual TP. |
| [F4 Remove] | Delete the selected license. This can be operated in Maintainer. |
| [F5 Add] | Display the window for entering the license number of option function to add. Enter the license number in the window for entering license number, and press [OK] to add the option function. |
| [F7 Change order] | Pressing this button will change the function name in alphabetical order. |
To enable the functions, the COBOTTA must be restarted.
