Displaying and Setting the Collision/Interference Functions

Operation path : [F2 Arm] - [F6 Aux] - [F2 Collision/Interference]

Display the menu to set "Collision Detecition" and "Virtual Fence".

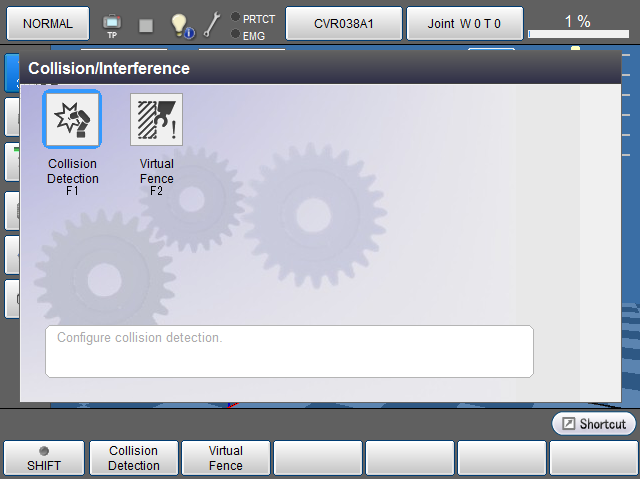

Press [F2 Collision/Interference] to display the following [Collision/Interference] window.

Available function keys
[F1 Collision Detection] (Ver.2.7.*or higher）	Display [Collision detection setting] window. Set Collision Detection Function.
[F2 Virtual Fence] (Ver.2.5.*or higher）	Display [Virtual Fence] window. Specify the virtual fence change the Start Monitoring/Stop Monitoring switch and setting. This menu will be displayed when the license of Virtual Fence function is registered.

Available function keys

[F1 Collision Detection]
(Ver.2.7.*or higher）

Display [Collision detection setting] window.

Set Collision Detection Function.

[F2 Virtual Fence]
(Ver.2.5.*or higher）

Display [Virtual Fence] window.

Specify the virtual fence change the Start Monitoring/Stop Monitoring switch and setting.

This menu will be displayed when the license of Virtual Fence function is registered.
