Displaying and Setting Work Coordinates

Operation path : [F2 Arm] - [F6 Aux] - [F4 Work]

Define work coordinate. The maximum of 7 work coordinates can be registered.

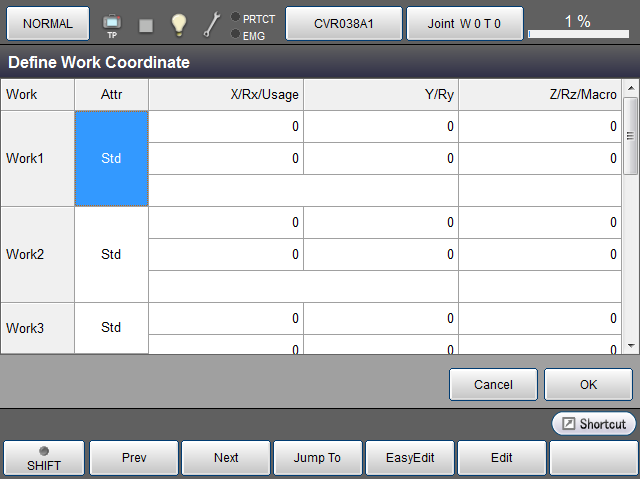

Press [F4 Work] to display the following [Define Work Coordinate] window.

Available function keys
[F1 Prev] Move to the previous page of the currently displayed work coordinates.
[F2 Next] Move to the next page of the currently displayed work coordinates.
[F3 Jump To]

Displays numeric keypad.

Enter the work coordinates number to display with numeric keypad, and press [OK] to display the work coordinates of the specified number.
[F4 Easy Edit] Work coordinates can be set by teaching three points with robot.
[F5 Edit]

Select the work number and coordinate element to change, and press [Edit] to display numeric keypad.

Enter the value with numeric keypad, and press [OK] on the numeric keypad to confirm.
To change the attribute, press [Edit] to open the selection window. Select [Standard] or [FixedTool(Fix)] and then press [OK] to confirm.
Press [OK] in [Define Work Coordinate] window to confirm the changed value.
